P150

Spraying

• 70 L

  Smart Liquid Tank

• 30 L/min

  Max. Flow Rate

• 5-10 m

  Effective Spray Width

• 60-400 μm

  Droplet Size Adjusting Range

Spreading

75L Tank / 110lbs capacity

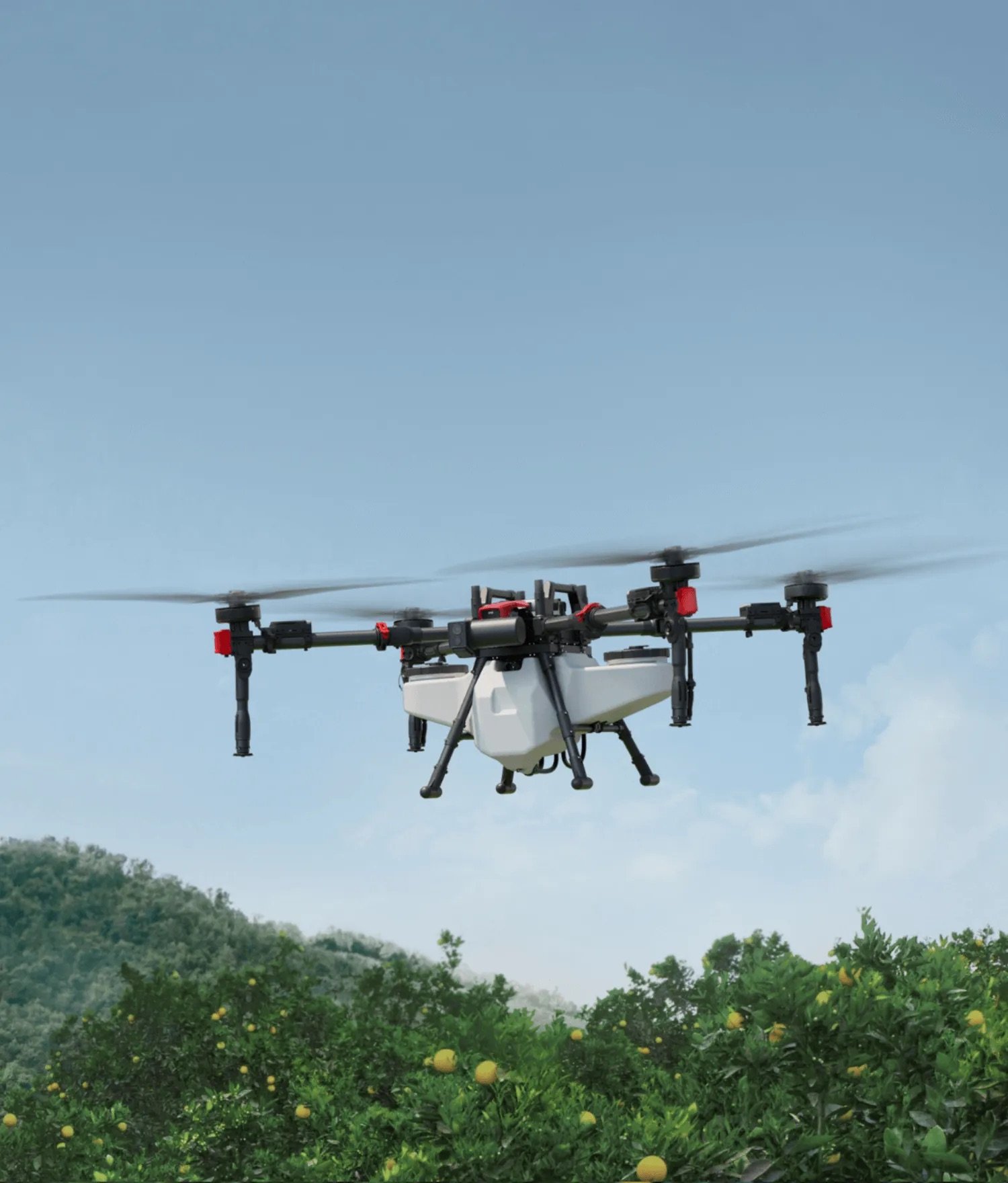

Unmatched Precision, Unrivaled Performance

With its pioneering intelligent rotary atomization spraying technology, the XAG RevoSpray System delivers effective crop protection in both open fields and orchards. The quad-rotor design of P150 generates strong downdraft, ensuring uniformed coverage on both sides of the leaves. When upgraded to four centrifugal nozzles, 6the P150 can handle the toughest and most challenging scenarios.

Even Spreading for Superior Efficiency

When equipped with the XAG RevoCast System, the P150 can spread a 50-kilogram bag of fertilizer in just 11 seconds. 11It excels in high-precision spreading tasks and brings exceptional efficiency.

Tap & Map, Ready in a Snap

Mounted with the XAG RealTerra System, the P150 can capture high-definition images during autonomous flights. The images will be automatically stitched into field maps and exported right after landing. Up to 13.3 hectares  15of farmland can be surveyed in a single flight.

The Super Brain Behind

Powerful processors and state-of-the-art control algorithm propel the P150 to achieve fully autonomous operation with superior performance.

Built to Last

The perfect fusion of industrial aesthetics and material science combines practicality, durability and cost-effectiveness. Every detail is crafted for effortless use, making the XAG P150 easier to maintain, assemble and transport.

Autonomous Operation at the Touch of a Finger

Intelligent Route Planning

The optimal route is generated based on the field shape and parameters. The drone will automatically return to home in the event of low liquid or power. You can pause and resume the flight path at any time.

Variable-Rate Application

Using prescription maps, the drone adjusts application rates in-flight, ensuring specific zones receive the precise amount of pesticides, fertilizers or growth regulator as needed.

*Compatible with VRA maps from PIX4Dfields.

No Network? There is a Solution for That

The XAG XRTK6 Pro Mobile Station serves as a portable RTK station and field mapper, enabling autonomous operation without a CORS network. When paired with the XAG DL1 Data Link, it expands communication range and supports real-time video transmission for safer flight.

Quick to Charge, Ready on Demand

Charging efficiency is crucial in agricultural operations, where every minute counts. The XAG Smart Supercharge Battery, paired with a fuel-powered charger and the new battery cooling tower, enables an 8-minute20 rapid charge upon landing.

SPRAYING SYSTEM

• 70 L

• Smart Liquid Tank

• 30 L/min

  Max. Flow Rate

• 5-10 m

  Effective Spray Width7

• 60-400 μm

  Droplet Size Adjusting Range8

Example #1 - Speed 2.5 m/s Spray width 4 m

(Application volume up to 495 L/ha)

Example# 2 - Speed 7 m/s Spray width 7 m

(Application volume up to 102 L/ha)

Pumps

Flexible impeller pumps with a service life of 300 hours eliminates the need for frequent replacements, making it economical durable.

Tank

Smart liquid tank with water, pressure sensor removes foam interference, achieving precise detection of remaining liquid level.

Nozzles

New centrifugal nozzles enhance the atomizing effect, ensuring uniform spray distribution even at high flow rates .

Fill Port

Liquid filling ports designed with nested cats make liquid refilling easier, and more convenient.

SPREADING SYSTEM

• 115 L

  Granule Container

• 280 kg/min

  Max. Spread Rate12

  * When spreading urea, the spread rate is up to 220 kg/min

• 8 m

  Effective Spread Width13

• 18 m/s14

  Max. Flight Speed

Spreader

The vertical waving spreader increases downward force to the granules and provides better wind resistance, covering large areas quickly without overlap and missing.

Feeder

Three types of screw feeders adapt to a range of tasks, from fertilizer spreading, direct seeding to aqua cultural feeding and powder scattering.

Fill Type

The large dual-side filling port enable faster and easier refilling.

SPRAY OPERATIONS

64 acres per hour @ 30L/min flow rate in open field

SPREADING OPERATIONS

2167 kg/h @280kg/m MAX spread rate

TESTED FOR RELIABILITY , SAFETY, AND DURABILITY

• Obstacle Avoidance

  The high-performance 4D imaging radar detects obstacles with precision from 1.5 to 100 meters17 along the flight path. It ensures safe operation around the clock without dependence on ambient light.

• Real-Time 3D Terrain Mapping

  Advanced environment perception enables autonomous flight without preloaded maps, even over hilly terrain. The integrated AI learning feature further enhances efficiency during the flight.

• Safe Takeoff/Landing

  The lower visual module accurately records terrain features at takeoff and landing points, with automatic hovering triggered by detected anomalies.

BUILT TO LAST

The perfect fusion of industrial aesthetics and material science combines practicality, durability and cost-effectiveness. Every detail is crafted for effortless use, making the XAG P150 easier to maintain, assemble and transport.

Design Highlights

• The 60 inch high performance flapping, propellers feature deformation and heat resistance, low noise and reliable performance in harsh operational conditions.

• The flight platform and task systems are separable, allowing for a quick switch between spring, spreading and mapping as needed.

• The foldable arms can reduce the Drones volume by 20% making transport and storage more convenient.

• With IPX6K protection, the entire body can be washed directly with water to remove pesticide residue.
