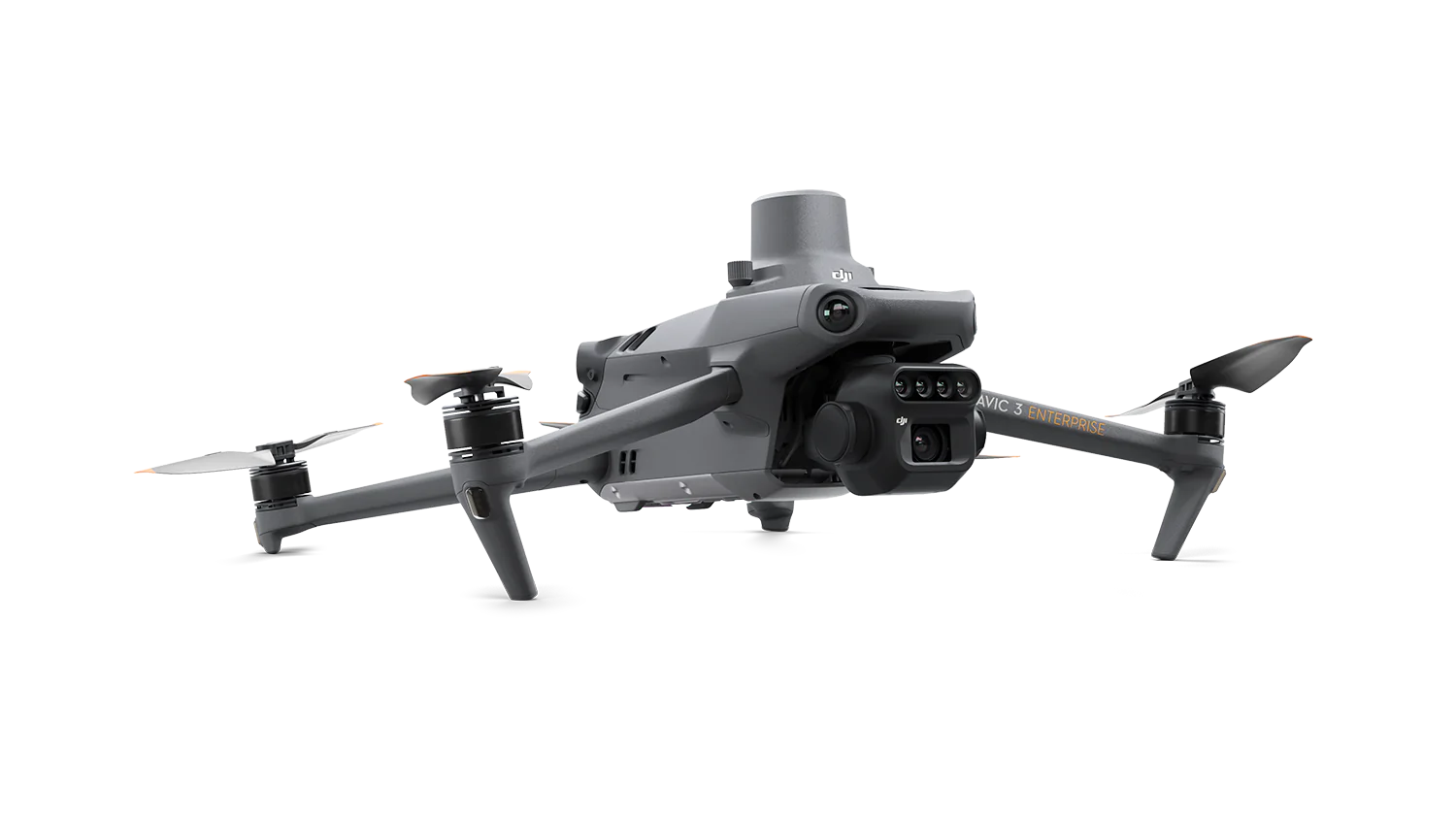

Effective aerial surveying needs to see the invisible. That's why Mavic 3 Multispectral has two forms of sight. It combines an RGB camera with a multispectral camera to scan and analyze crop growth with total clarity. Agricultural production management requires precision and data, and Mavic 3M delivers both.

Compact and portable

Foldable for easy storage

Multispectral Camera

4 × 5MP
G/R/RE/NIR

RGB camera

20 MP
4/3 CMOS, mechanical shutter

Safe and stable

Omnidirectional Obstacle Avoidance [1]
15km Transmission Distance [2]

Precise positioning

Centimeter-level RTK positioning
Microsecond-level time synchronization

Efficient aerial surveying

Up to 200 hectares per flight [3]

Accurate images that capture every pixel

Mavic 3M with RTK module for centimeter-level positioning. Flight control, the camera, and the RTK module sync in microseconds to accurately capture the location of each camera's imaging center. This enables Mavic 3M to do high-precision aerial surveying without using ground control points.

Omnidirectional obstacle sensing [1], terrain-follow aerial surveying

The aircraft features multiple wide-FOV vision sensors that accurately detect obstacles in all directions for omnidirectional obstacle avoidance. The terrain-follow aerial surveying can be easily performed in steep-slope landscapes.

Orchard mapping

Mavic 3M allows terrain-follow aerial surveying of orchards, even on sloped landscapes. Together with DJI Terra or DJI SmartFarm Web [6] to reconstruct high-resolution orchard maps, automatically identify the number of trees, distinguish trees from other obstacles or objects, and generate three-dimensional operation routes for agricultural drones, making operations safer and more efficient.

Guide variable rate applications

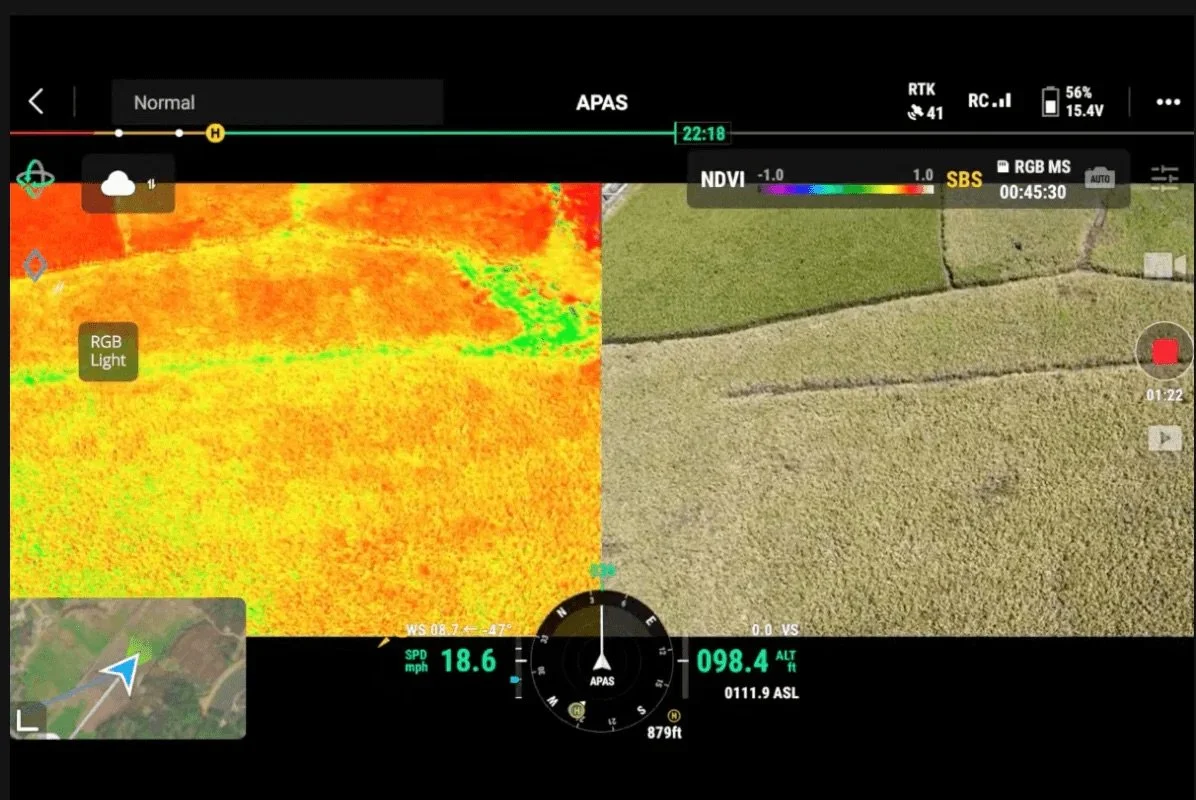

For rice fertilization, cotton growth regulation, and potato foliar fertilizer spraying, the Mavic 3M is used to obtain multi-spectral images of crops. DJI Terra or the DJI SmartFarm Web [6] can then generate NDVI and other vegetation indices maps, capturing differences in crop potential and generating prescription maps that allow agricultural drones to execute variable-rate application. This ultimately allows users to reduce costs, increase yield, and protect the environment.

Intelligent field scouting

The Mavic 3M can carry out automatic field scouting. The field scout images can be uploaded to the DJI SmartFarm Web [6] in real time through a 4G network. It can also conduct intelligent analyses, such as cotton seedling identification and rice production testing, for real-time sharing of crop growth information, guidance of agronomic activities, and easy management of 70 hectares of farmland by one person.

Multispectral Camera

• Image Sensor

• 1/2.8-inch CMOS, effective pixels: 5 MP

• Lens

• FOV: 73.91° (61.2° x 48.10°)
  Equivalent focal length: 25 mm
  Aperture: f/2.0
  Focus: Fixed Focus

• Multispectral Camera Band

• Green (G): 560 ± 16 nm;
  Red (R): 650 ± 16 nm;
  Red Edge (RE): 730 ± 16 nm;
  Near infrared (NIR): 860 ± 26 nm;

• Gain Range

• 1x-32x

• Shutter Speed

• Electronic Shutter: 1/30~1/12800 s

• Max Image Size

• 2592×1944

• Image Format

• TIFF

• Video Format

• MP4 (MPEG-4 AVC/H.264)

• Photo Shooting Mode

• Single shot: 5 MP
  Timelapse: 5 MP
  TIFF: 2/3/5/7/10/15/20/30/60 s

• Video Resolution

• H.264
  FHD: 1920 x 1080@30fps
  Video content: NDVI/GNDVI/NDRE

• Max Video Bitrate

• Stream: 60 Mbps

RGB Camera

• Image Sensor

• 4/3 CMOS
  Effective Pixels: 20 MP

• Lens

• FOV: 84°
  Equivalent focal length: 24 mm
  Aperture: f/2.8 to f/11
  Focus: 1 m to ∞

• ISO Range

• 100-6400

• Shutter speed

• Electronic shutter: 8-1/8000 s
  Mechanical shutter: 8-1/2000 s

• Max Image Size

• 5280×3956

• Photo Shooting Mode

• Single shot: 20 MP
  Timed: 20 MP
  JPEG: 0.7/1/2/3/5/7/10/15/20/30/60 s
  JPEG + RAW: 3/5/7/10/15/20/30/60 s
  Panorama: 20 MP (original material)

• Video Resolution

• H.264:
  4K: 3840×2160@30fps
  FHD: 1920×1080@30fps

• Max Video Bitrate

• 4K: 130Mbps
  FHD: 70Mbps

• Supported File System

• exFAT

• Image Format

• JPEG/DNG (RAW)

• Video Format

• MP4 (MPEG-4 AVC/H.264)
