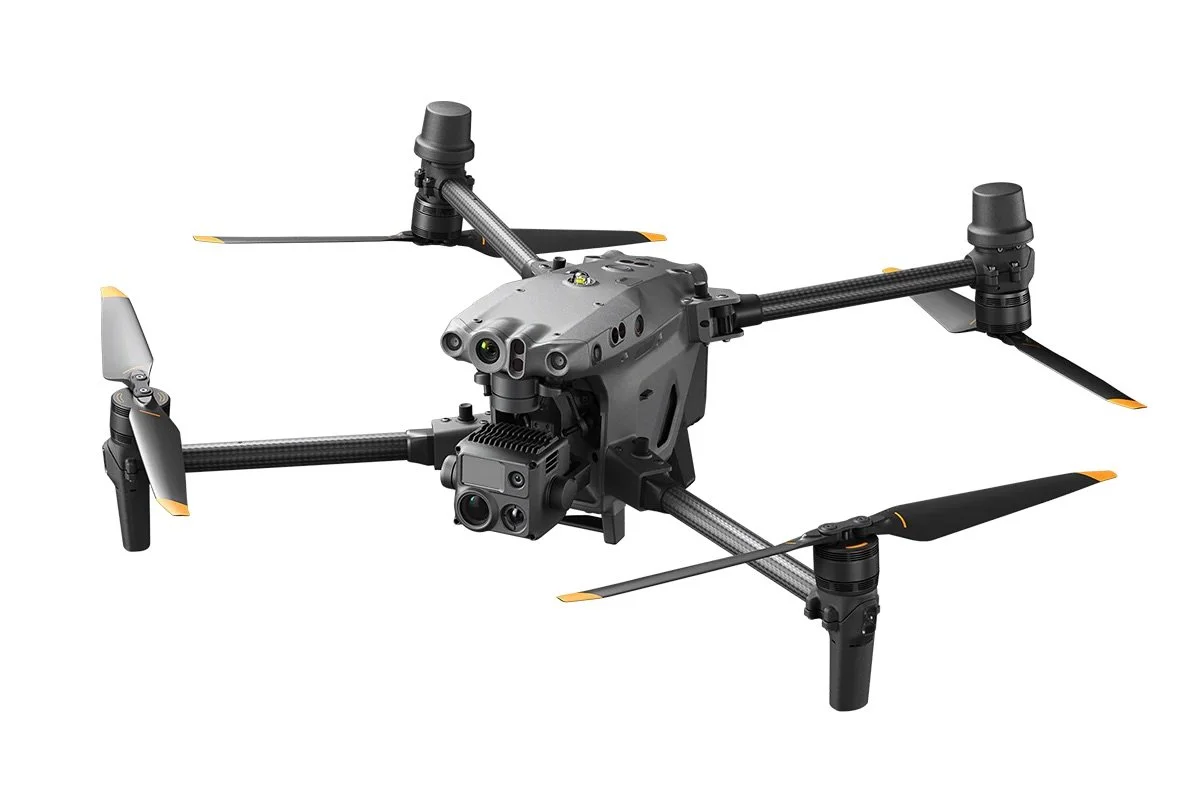

MATRICE 30T
Unique aerial intelligence to capture everything.
-
Max Flight Time[2]
41 min
Operating Temperature
-20° to 50° C (-4° to 122° F)
-

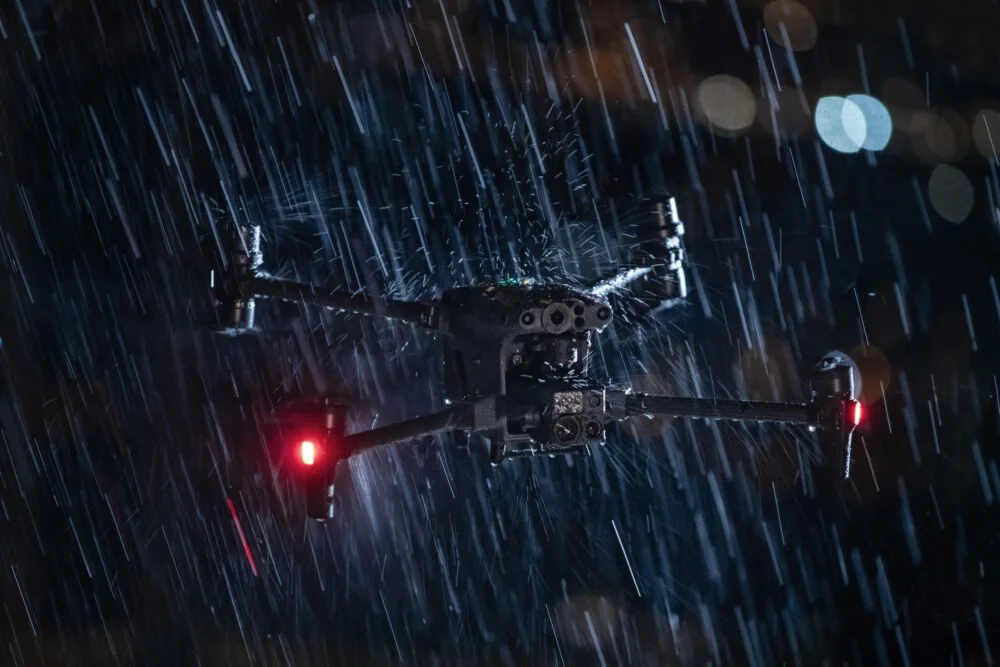

Environmental Adaptability
With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.
Safe and Reliable
Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.
Redundancies and Backup Systems
Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

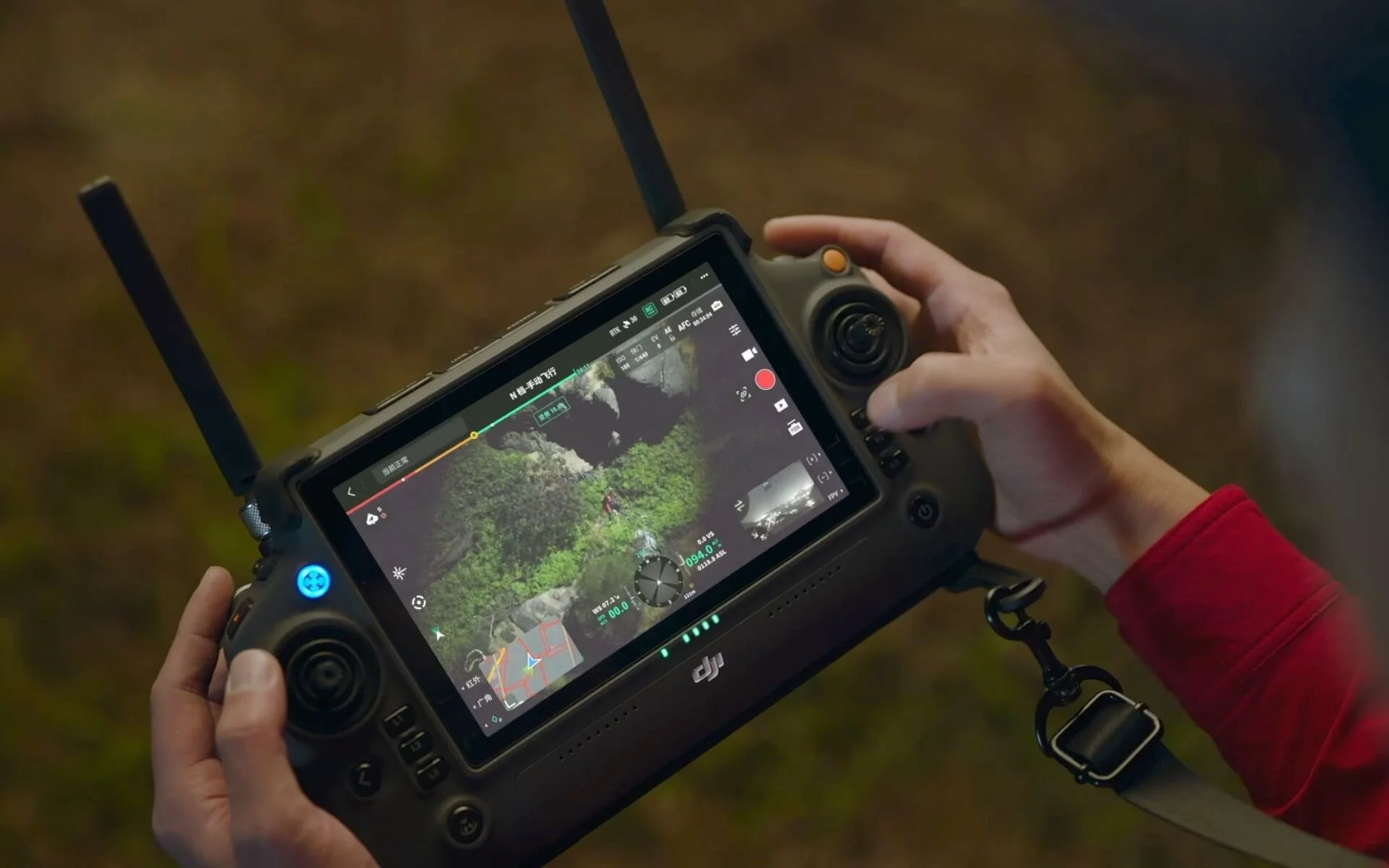

Enhanced Reliability in Video Transmission
Four built-in antennas support O3 Enterprise Transmission, with two antennas to transmit signals and four antennas to receive signals, enabling triple-channel 1080p live feeds. The Matrice 30 Series supports the DJI Cellular Dongle.* This enables 4G Enhanced Transmission to work with O3 Enterprise Transmission for seamless operation in complex environments, helping to ensure safer flights.
Smart Inspection
An upgrade to Live Mission Recording brings an optimized user interface, convenient task recording, and target point marking, saving 90% of operation steps. Gimbal angle and photo settings can be adjusted between Waypoints, improving flight and mission efficiency.
Route Planning and Management
Flight routes and missions planned in FlightHub 2 can be easily synchronized with Pilot 2. Operation data can be automatically uploaded to FlightHub 2 Media Files for unified management and analysis.
-
Capture Everything
The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.
Wide Camera
Equivalent Focal Length: 24 mm, DFOV: 84°
12 MP 1/2'' CMOS Sensor
Video Resolution: 4K/30fpsZoom Camera
48 MP 1/2'' CMOS Sensor
5x-16x Optical Zoom
200x Max. Hybrid Zoom
Photo Resolution: 8K
Video Resolution: 4K/30fpsThermal Imaging Camera
Equivalent Focal Length: 40 mm
Resolution: 640×512
Frame Rate: 30fps
Measurement Accuracy: ±2°C or ±2%3Laser Rangefinder
Range: 3 m - 1200 m
Accuracy: ±(0.2m+D×0.15%)4
